₪2,599.00

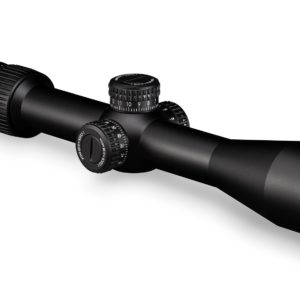

Try not to spit out your coffee as you check the price of the Diamondback Tactical FFP after reading about its impressive performance and features. The first focal plane reticle, a feature ordinarily reserved for 4-figure-priced optics, allows shooters to use the information-packed EBR-2C reticles for ranging, holdovers or windage corrections on any magnification. Housed inside its durable, one-piece aluminum tube is a 4x optical system delivering excellent edge-to-edge clarity and sharp resolution. Exposed elevation and windage turrets are low profile enough to stay out of the way in packing situations, but offer the quickness, ease and precision of dialing accurate shots at distance. A side adjustable parallax gives shooters peace of mind by removing parallax error from the equation from 20 yards to infinity.
Dual use for Shooting Tactical / Hunting
Included In The Box
Optical Features | |
| XD™ Lens Elements | Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images. |
| Fully Multi Coated Lenses | Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance. |
| First Focal Plane | Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications. |
| Glass-Etched Reticle | Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability. |
Construction Features | |
| Tube Size | 30 mm diameter provides maximized internal adjustment and strength. |
| Nitrogen Gas Purged | Gas purged and o-ring sealed for fogproof and waterproof performance in all conditions. |
| Aircraft-Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
| Waterproof | O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments. |
| Fogproof | Nitrogen gas purging prevents internal fogging over a wide range of temperatures. |
| Shockproof | Rugged construction withstands recoil and impact. |
| Hard Anodized Finish | Highly durable low-glare matte finish helps camouflage the shooter's position. |
| Precision-Glide Erector System | Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions. |
| Exposed Tactical Turrets | The Diamondback® Tactical scopes feature tactical windage and elevation turrets with Zero Reset making adjustments back to zero easy and quick. |
Internal Mechanism Design Features | |
| Precision-Glide Erector System | Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions. |
| Precision-force Spring System | Uses premium components in the erector-spring system to ensure maximum repeatability and ease of adjustment. |
<!--
-->
Convenience Features | |
| Fast Focus Eyepiece | Allows quick and easy reticle focusing. |
| Fiber Optic Radius Bar | The patented fiber optic Radius Bar visually assists tracking turret rotations. |
| Magnification Rib | The raised rib on the magnification ring facilitates fast magnification changes in the heat of action. |
| Magnification | 4-16 x |
| Objective Lens Diameter | 44 mm |
| Eye Relief | 3.8 inches |
| Field of View | 26.9-6.7 feet/100 yards |
| Tube Size | 30 mm |
| Turret Style | Tall Exposed Tactical |
| Adjustment Graduation | 0.1 MRAD |
| Travel per Rotation | 6 MRAD |
| Max Elevation Adjustment | 25 MRAD |
| Max Windage Adjustment | 25 MRAD |
| Parallax Setting | 20 yards to Infinity |
| Length | 14 inches |
| Weight | 23.1 ounces |
| Product Manual (PDF) | Download |
| Product Manual 2 (PDF) | Download |
| Lengths | |||||
| L1 | L2 | L3 | L4 | L5 | L6 |
| 14 | 2.25 | 2.7 | 6.5 | 3.83 | 3.75 |
| Heights | |
| H1 | H2 |
| 2.01 | 1.73 |
Dimensions measured in inches.
Hash-marked ranging reticle using MOA or MRAD based subtension lines for ranging, holdover, and windage corrections. Letters refer to reticle subtensions listed in chart below.
Subtension detail for the Diamondback Tactical 4-16x44 FFP with EBR-2C MRAD reticle.>
Read the EBR-2C (MRAD) Reticle manual for details on how to effectively determine range, holdover, windage and moving lead corrections.
| יצרן | Vortex Optics |
|---|---|
| הגדלה מינימאלית | 4x |
| הגדלה מקסימלית | 16x |
| הגדלה משתנה | כן |
| הארת ציור פני עדשה | לא |
| מיקום ציור פני עדשה | First Focal Plane |
| קוטר עצמית | 44 מ"מ |
| המרחק מעדשת העינית למיקום העין | 3.8 אינץ' |
| קוטר הכוונת | 30 מ"מ |
| סגנון התוף | Tall Exposed Tactical |
| הגדרות פרלקסה | 20 יארד עד אינסוף |
| משפחה | Diamondback Tactical 4-16x44 FFP |
| קנה מידת התוף | MRAD |
| הדרגתיות הכיול | .1 MRAD |
| תזוזה לכל נקישה | 6 MRAD |
| שדה ראיה | 26.9-6.7 רגל/100 יארד |
| כיול הגבהה מקסימלי | 25 MRAD |
| כיול צידוד מקסימלי | 25 MRAD |
| ציור פני עדשה | EBR-2C Reticle (MRAD) |
| משקל בגרמים | 654.87 |
| מאפיינים מיוחדים | עמיד במים, ערפל וזעזועים |
| ברקוד | 875874009608 |
| יוצר ב | סין |
| מתאים לרובה או לאקדח | רובה |
