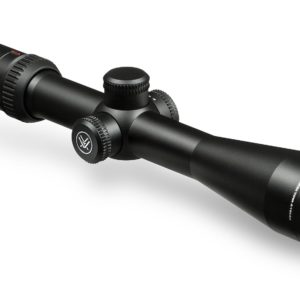

VORTEX VIPER HS 4-6X44 כוונת טלסקופית

מחיר

3,499.00

מידע כללי

מידע טכני

VIP Warranty
XD Lens Elements
XR Coatings
ArmorTek
Argon Purged
Waterproof

Vortex Viper HS riflescopes offer hunters and shooters an array of features sure to be well received. The advanced optical system, highlighted with a 4x zoom range, provides magnification versatility. A forgiving eye box with increased eye relief gets shooters on target quickly and easily. Built on an ultra-strong 30mm one-piece machined aluminum tube, the Viper HS delivers increased windage and elevation travel for optimal adjustment.

Dual use for Shooting Tactical / Hunting

Included In The Box

  • VIP Unconditional Lifetime Warranty
  • Protective lens caps
  • 4-inch sunshade
  • Lens cloth

Optical Features

XD™ Lens Elements Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images.
XR™ Fully Multi-Coated Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
Second Focal Plane Reticle Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.

Construction Features

Tube Size 30 mm diameter.
Single-Piece Tube Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade Aluminum Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.
Fogproof Argon gas purging prevents internal fogging over a wide range of temperatures.
Shockproof Rugged construction withstands recoil and impact.
Hard Anodized Finish Highly durable low-glare matte finish helps camouflage the shooter's position.
ArmorTek Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Capped Reset Turrets Allow quick re-indexing of the turret (no tool needed) to zero after sighting in the riflescope. Caps provide external protection for turret.
Side Focus Adjustment located on riflescope's left side and is easily accessible from shooting position. Provides optimal image focus and parallax removal.

Internal Mechanism Design Features

Precision-Force Spring System Uses premium components in the erector-spring system to ensure maximum repeatability and ease of adjustment.
Precision-Glide Erector System Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.

Convenience Features

MAG-View Fiber Optic Provides a highly visible reference point for the magnification setting.
Fast Focus Eyepiece Allows quick and easy reticle focusing.

Magnification 4-16 x
Objective Lens Diameter 44 mm
Eye Relief 4.0 inches
Field of View 27.4-7.4 feet/100 yards
Tube Size 30 mm
Turret Style Capped
Adjustment Graduation 1/4 MOA
Travel per Rotation 12 MOA
Max Elevation Adjustment 50 MOA
Max Windage Adjustment 50 MOA
Parallax Setting 50 yards to Infinity
Length 13.7 inches
Weight 18.4 ounces
Product Manual (PDF) Download
Product Manual 2 (PDF) Download

dim hs t

Lengths
L1 L2 L3 L4 L5 L6
13.7 2.0 2.2 5.6 4.2 3.6
Heights
H1 H2
2.03 1.63

Dimensions measured in inches.

ret vhs s bdc moa t

Customized hashmark design helps eliminate guesswork on holdover and windage corrections. Good for hunting/shooting at varying ranges where estimating holdover is a concern.

Subtension detail for the Viper HS 4-16x44 with Dead-Hold BDC reticle. >

Note
Read the Dead-Hold BDC Reticle manual for details on using the reticle for bullet drop compensation and wind drift compensation and ranging.

מידע נוסף

יצרן

Vortex Optics

הגדלה מינימאלית

4x

הגדלה מקסימלית

16x

הגדלה משתנה

כן

הארת ציור פני עדשה

לא

מיקום ציור פני עדשה

Second Focal Plane

קוטר עצמית

44 מ"מ

המרחק מעדשת העינית למיקום העין

4.0 אינץ'

קוטר הכוונת

30 מ"מ

סגנון התוף

Capped

הגדרות פרלקסה

50 יארד עד אינסוף

משפחה

Viper HS 4-16x44

קנה מידת התוף

MOA

הדרגתיות הכיול

1/4 MOA

תזוזה לכל נקישה

12 MOA

שדה ראיה

27.4-7.4 רגל/100 יארד

כיול הגבהה מקסימלי

50 MOA

כיול צידוד מקסימלי

50 MOA

ציור פני עדשה

Dead-Hold BDC Reticle

משקל בגרמים

521.63

מאפיינים מיוחדים

עמיד במים, ערפל, זעזועים ושריטות

ברקוד

875874003224

יוצר ב

פיליפינים

מתאים לרובה או לאקדח

רובה
