VORTEX STRIKE EAGLE כוונת טלסקופית 1-8X24 עם ציור פני עדשה AR-BDC3 - MOA

מחיר

3,159.00

במלאי (ניתן להזמנה מוקדמת)

מידע כללי

מידע טכני

Optimize the versatility and quick-handling attributes of your AR with the redesigned Strike Eagle. A true 1x on the low end, Strike Eagle zooms to let shooters rapidly engage targets near and far, and an AR-BDC3 reticle aids in rapid shooting while providing holdover and ranging references from 0-600 yards. Plus, with a thread-in throw lever, you'll be on target even faster, shot after shot.



VORTEX STRIKE EAGLE 1-6X24 AND 1-8X24 UPDATED RIFLESCOPES :





SE-1824-2 Features:

SE-1824-2 Optical Features:

Illuminated Reticle Provides precise aiming under low-light conditions
Fully Multi-Coated Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
Second Focal Plane Reticle Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.
Glass-Etched Reticle Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.

SE-1824-2 Construction Features:

ArmorTek ? Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Shockproof Rugged construction withstands recoil and impact.
Waterproof - IPX7 Designed to meet IPX7 waterproofing standards.
Fogproof Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
Tube Size 30 mm diameter provides maximized internal adjustment and strength.
Aircraft-Grade Aluminum Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Single-Piece Tube Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.

SE-1824-2 Convenience Features:

Fast Focus Eyepiece Allows quick and easy reticle focusing.
Throw Lever The included throw lever can be installed for quick and easy magnification adjustments.

SE-1824-2 Specifications:

Magnification 1-8x
Objective Lens Diameter 24 mm
Eye Relief 3.5 inches
Field of View 109 -14.4 ft @100 yds
Tube Size 30 mm
Turret Style Low Capped
Adjustment Graduation 1/2 MOA
Travel Per Rotation 44 MOA
Max Elevation Adjustment 140 MOA
Max Windage Adjustment 140 MOA
Parallax Setting Fixed @100 yds
Length 10.0 inches
Weight 17.6 oz
Product Manual (PDF) Download
Reticle Manual (PDF) Download



SE-1824-2 Included In the Box:

  • Thread-in throw lever
  • Flip caps
  • Lens cloth
  • CR2032 battery



SE-1824-2 Measurments:

SE 1624 2 6

LENGTHS
L1 L2 L3 L4 L6
10.0 2.8 1.8 6.4 3.5

**Dimensions measured in inches.

HEIGHTS
H1 H2
1.2 1.7

**Dimensions measured in inches.

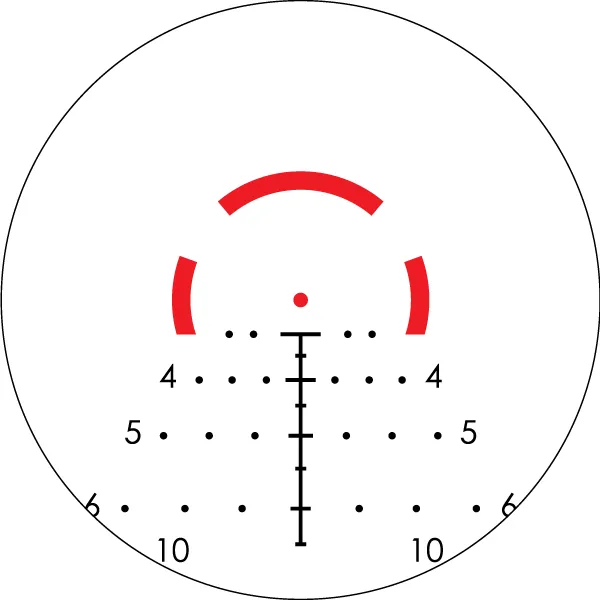

AR-BDC3 RETICLE:

The illuminated, glass-etched AR-BDC3 is specifically tuned to the ballistic performance of common 5.56 loads out of an AR-15. The 1 MOA center dot provides a precise point of aim while the surrounding 18 MOA horseshoe gets your eye into the center faster for rapid target acquisition, and the BDC keeps you on target out to 650 yards.

Subtension detail for Strike Eagle 1-6x24 riflescope with AR-BDC3 reticle.

SE 1624 2 5

מידע נוסף

ברקוד

843829110952

יוצר ב

סין

מתאים לרובה או לאקדח

רובה

הארת ציור פני עדשה

כן

ציפוי

רב שכבתי

צפ"ע חרוט בעינית

כן

עמיד בפני זעזועים

כן

עמידות במים

IPX7

עמיד בערפל

כן

גודל הכוונת

30 מ"מ

חומר

Aircraft-Grade Aluminum

הגדלה מינימאלית

1x

הגדלה מקסימלית

8x

קוטר עצמית

24 מ"מ

המרחק מעדשת העינית למיקום העין

3.5 אינץ'

שדה ראיה

14.4-109 רגל /100 יארד

סגנון התוף

Low Capped

הדרגתיות הכיול

1/2 MOA

תזוזה לכל נקישה

44 MOA

כיול הגבהה מקסימלי

140 MOA

כיול צידוד מקסימלי

140 MOA

הגדרות פרלקסה

100 יארד

אורך

10 אינץ'

משקל באונקיות

17.6

ציור פני עדשה

AR-BDC3

סוג סוללה

CR2032
