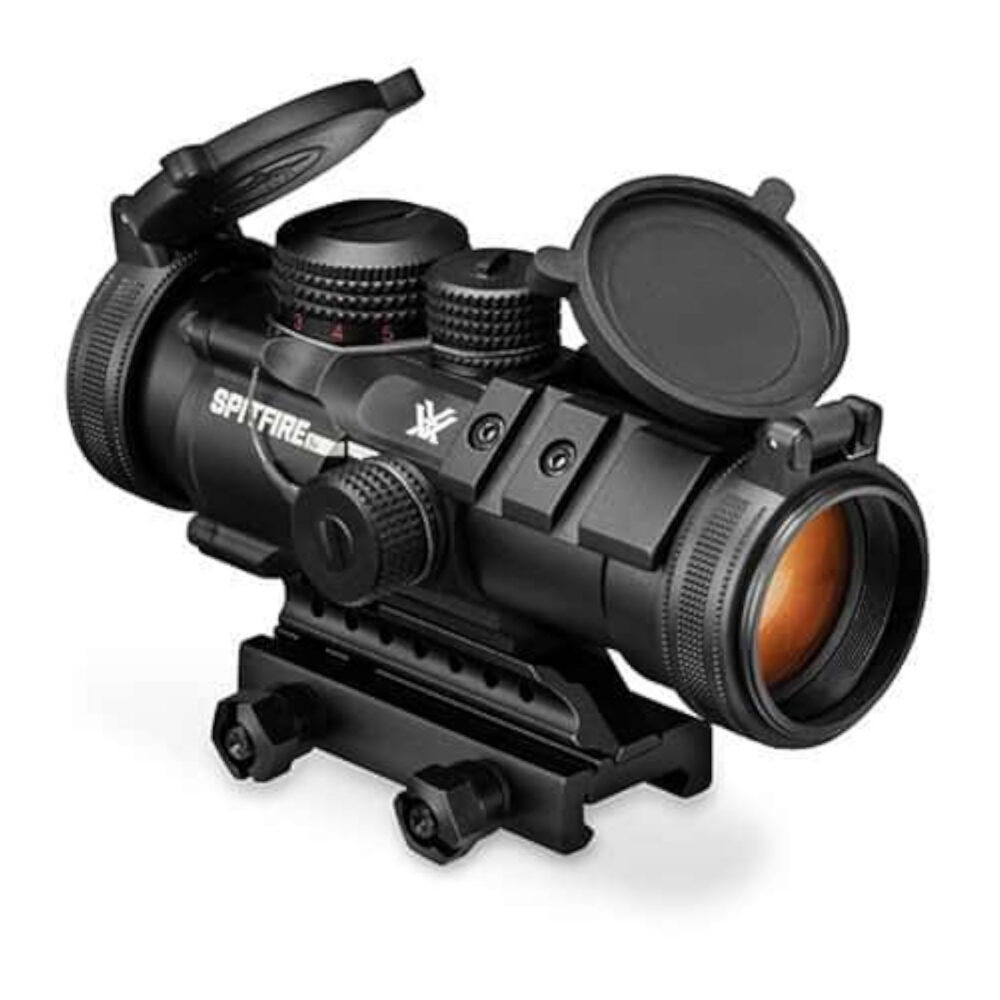

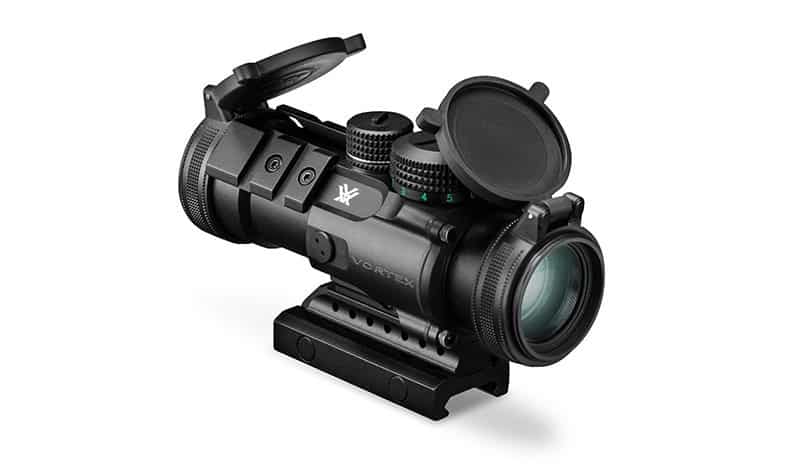

SPR-1303 Vortex Optics Spitfire 3X Prism Scope
₪1,809.00

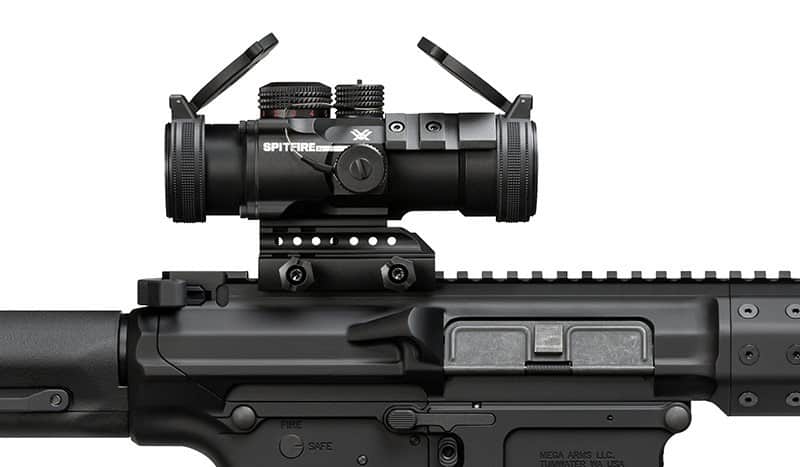

Designed specifically for the AR platform, the 3x Spitfire combines an impressive array of high-performance features into a rugged, ultra-compact package. When fast target acquisition in close- to medium-range shooting applications is a priority, the Spitfire excels. Laced with advanced features, the sophisticated prism-based design allows for a more compact optical system without sacrificing optical quality. The DRT (Dual Ring Tactical) reticle is etched directly on the prism to assure consistent point-of-aim at all times with selectable red/green illumination of five intensity levels to match specific conditions.Prism Scopes are not compatible with the VMX-3T Magnifier.
Features:
Optical Features:
| Fully Multi-Coated | Multiple anti-reflective coatings on all air-to-glass surfaces increase light transmission. |
| Prism-Based Design | Delivers sharp optics and allows for unique reticle designs that are visible with or without illumination. |
Construction Features:
| Single-Piece Chassis | Compact and lightweight. |
| Waterproof | O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments. |
| Fogproof | Nitrogen gas purging delivers fogproof, waterproof performance. |
| Shockproof | Rugged construction withstands recoil and impact. |
| Hard Anodized Finish | Highly durable low-glare matte finish. |
| Operating Temperature | Rated from -22 degrees to +122 degrees Fahrenheit. |
Convenience Features:
| Variable Mount Heights | Comes mounted at a lower 1/3 co-witness height of 40.4 mm from the optic center to base surface. Remove the mount riser if a lower 30 mm mounted height is desired. |

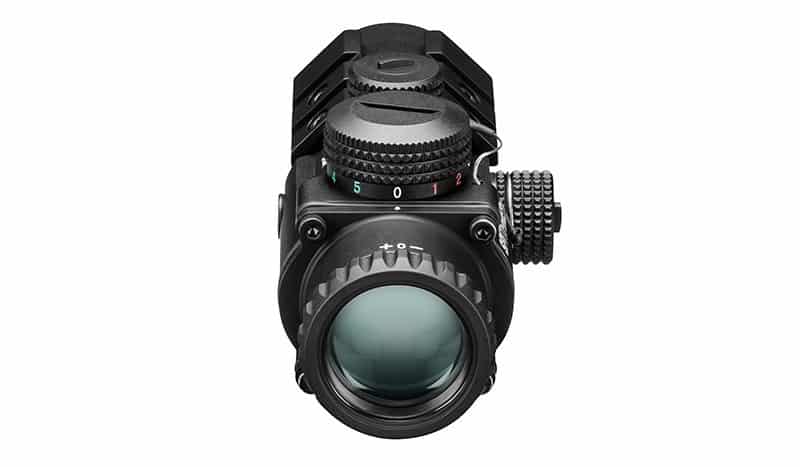

| Adjustable Brightness | Provides five levels of brightness intensity with red and green illumination settings. |
| Red/Green Reticle Option | Allows shooters a choice of dot color. |
| Battery Life | Typical battery life is 250 hours at maximum brightness and 3,000 hours at minimum brightness setting. |
Specifications:
| Magnification | 3 x |
| Eye Relief | 2.8 inches |
| Field of View | 31.5 feet/100 yards |
| Adjustment Graduation | 1/2 MOA |
| Max Elevation Adjustment | 120 MOA |
| Max Windage Adjustment | 120 MOA |
| Parallax Setting | 100 yards |
| Length | 5.5 inches |
| Weight | 15.4* |
| Product Manual (PDF) | Download |
Included In the Box:
Dimensions:
Reticle:
EBR-556B (MOA) RETICLE:
The EBR-556B reticle (Enhanced Battle Reticle) is designed around the 5.56 x 45 cartridge to aid in rapid shooting at both near and far ranges providing holdover and ranging references from 0-500 yards. Etched directly on the prism to assure consistent point-of-aim at all times with selectable red/green illumination of five intensity levels to match specific conditions.
Subtension detail for the Spitfire 3x prism scope with EBR-556B reticle. >
Note
Read the Spitfire 3x Reticle manual for tips on shooting.
| הגדלה מינימאלית | 3x |
|---|---|
| הגדלה מקסימלית | 3x |
| הגדלה משתנה | לא |
| הארת ציור פני עדשה | כן |
| המרחק מעדשת העינית למיקום העין | 2.8 אינץ' |
| הגדרות פרלקסה | 100 יארד |
| משפחה | Spitfire 3x Prism Scope |
| קנה מידת התוף | MOA |
| הדרגתיות הכיול | 1/2 MOA |
| שדה ראיה | 31.5 רגל/100 יארד |
| כיול הגבהה מקסימלי | 120 MOA |
| כיול צידוד מקסימלי | 120 MOA |
| ציור פני עדשה | EBR-556B (MOA) Reticle |
| משקל בגרמים | 436.58 |
| מאפיינים מיוחדים | עמיד במים, ערפל וזעזועים |
| מתאים לרובה או לאקדח | רובה |
